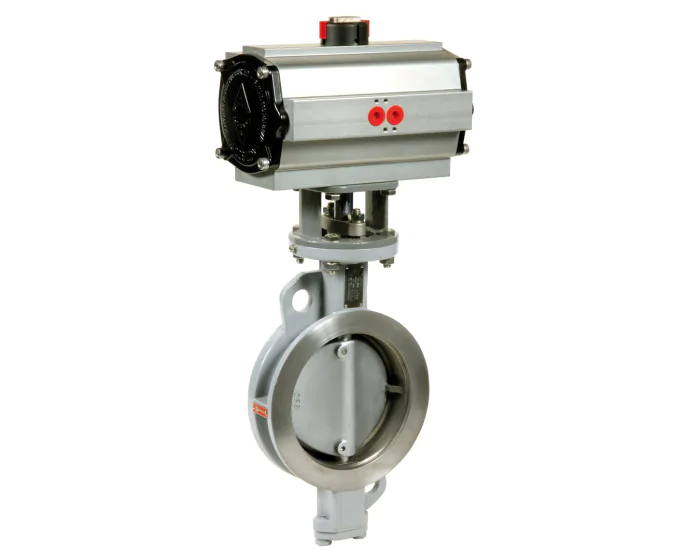

The 1115 series carbon steel butterfly valve, equipped with either a spring return or double acting ACTREG pneumatic actuator, features a CF8M disc and an A216WCB body. It is a double offset butterfly valve, wafer type, ANSI 150.
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| Maximum delta P (bar) | 20 |
| Operating angle (°) | 90 |
| Shaft/stem matérial | Stainless steel 630 (17-4 PH) |
| Adjustable limit screws | Yes |
| Lockable | Yes |
| ATEX compatible | Yes |
| DN | DN50 - 2'' |
| Face to Face (mm) | 43 |
| Body material | Carbon steel A216 WCB (1.0619) |
| ATEX protection mode | Ex c |
| Number of ways | 2 |
| Disc material | Stainless steel CF8M |
| Position | Normally closed |
| PS (bar) | 20 |
| Connections | Flanged #150 PN20 |
| Seats | PTFE-Graphite |
| Surface temperature | TX |
| Pneumatic actuator type | Double acting |
| Butterfly valve design | Double offset |
| Wafer/lug | Wafer |
| Warranty period | 2 years |
| CE | Risk category I |
| Fire safe | Yes |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Flanged #150 PN20 Carbon steel A216 WCB (1.0619) Double offset DN50 - 2'' Double acting | 260910015101 | S1002198 |
€583.44
(excl. btw)
|
add to cart |
| Flanged #150 PN20 Carbon steel A216 WCB (1.0619) Double offset DN50 - 2'' Spring return | 260910016102 | S1002199 |
€648.71
(excl. btw)
|
add to cart |
| Flanged #150 PN20 Carbon steel A216 WCB (1.0619) Double offset DN65 - 2''1/2 Double acting | 260911015101 | S1002200 |
€583.44
(excl. btw)
|
add to cart |
| Flanged #150 PN20 Carbon steel A216 WCB (1.0619) Double offset DN65 - 2''1/2 Spring return | 260911016102 | S1002201 |
€648.71
(excl. btw)
|
add to cart |
| Flanged #150 PN20 Carbon steel A216 WCB (1.0619) Double offset DN80 - 3'' Double acting | 260912015102 | S1002202 |
€760.91
(excl. btw)
|
add to cart |
| Flanged #150 PN20 Carbon steel A216 WCB (1.0619) Double offset DN80 - 3'' Spring return | 260912016103 | S1002203 |
€805.80
(excl. btw)
|
add to cart |
| Flanged #150 PN20 Carbon steel A216 WCB (1.0619) Double offset DN100 - 4'' Double acting | 260913015102 | S1002204 |
€861.37
(excl. btw)
|
add to cart |
| Flanged #150 PN20 Carbon steel A216 WCB (1.0619) Double offset DN100 - 4'' Spring return | 260913016104 | S1002205 |
€961.09
(excl. btw)
|
add to cart |
| Flanged #150 PN20 Carbon steel A216 WCB (1.0619) Double offset DN125 - 5'' Double acting | 260914015104 | S1002206 |
€986.40
(excl. btw)
|
add to cart |
| Flanged #150 PN20 Carbon steel A216 WCB (1.0619) Double offset DN125 - 5'' Spring return | 260914016105 | S1002207 |
€1,110.49
(excl. btw)
|
add to cart |
| Flanged #150 PN20 Carbon steel A216 WCB (1.0619) Double offset DN150 - 6'' Double acting | 260915015105 | S1002208 |
€1,271.90
(excl. btw)
|
add to cart |
| Flanged #150 PN20 Carbon steel A216 WCB (1.0619) Double offset DN150 - 6'' Spring return | 260915016106 | S1002209 |
€1,416.17
(excl. btw)
|
add to cart |
| Flanged #150 PN20 Carbon steel A216 WCB (1.0619) Double offset DN200 - 8'' Double acting | 260916015105 | S1002210 |
€2,063.26
(excl. btw)
|
add to cart |
| Flanged #150 PN20 Carbon steel A216 WCB (1.0619) Double offset DN200 - 8'' Spring return | 260916016106 | S1002211 |
€2,208.59
(excl. btw)
|
add to cart |
| Flanged #150 PN20 Carbon steel A216 WCB (1.0619) Double offset Double acting DN250 - 10'' | 260917015106 | S1002212 |
€3,445.49
(excl. btw)
|
add to cart |
| Flanged #150 PN20 Carbon steel A216 WCB (1.0619) Double offset Double acting DN300 - 12'' | 260918015106 | S1002213 |
€3,553.69
(excl. btw)
|
add to cart |
